Product Description
1 Product Name

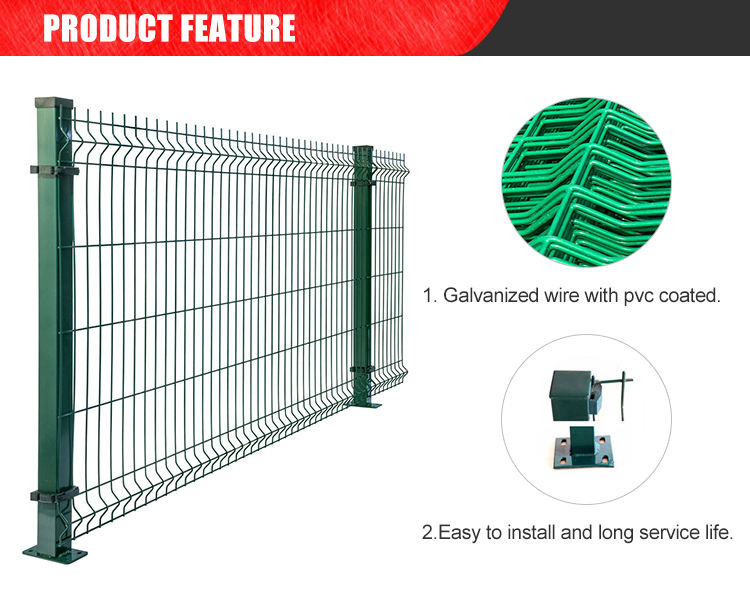

Curvy fence panel is a security and attractive fence with beautiful
appearance, and it is ideal for residential area and entertainment
venues.
Curvy fence panel can also be called 3D fencing. It is mostly made
of stainless steel or carbon steel. Firstly, the workers weld the
wires into panel, and then adopt bending machine to bend the wires
on the short side of the rectangular shape, so the V-shaped curves
are produced. It is important to note that the quantity of V-shaped
curve depends on the height of welded wire panel. This uses the
principle of triangle stability to provide additional strength and
rigidity for the panel. In addition, curvy fence panel can be
installed on flat areas or slopes, and it can also be applied in a
variety of different land types such as general land surface or
sand.
With stable, durable and flexible structure, curvy fence panel is
widely used as fence in airport, school, factory, residential area,
garden, warehouse, stadium, military venue and entertainment place.
We can install the lower curvy fence panel in general place, but in
military venue or prison, the height of curvy fence panel should be
higher, you can choose the suitable height according to your
application.
2 Specification
● Material: low carbon steel wire Q195, Q235.
● Surface treatment
● Hot dipped galvanized (505 g/m2).
● Electro galvanized (zinc coating: 8–12 g/m2) then PVC/PE coated
(thickness: 0.8–1.2 mm).
● Electro galvanized (zinc coating: 8–12 g/m2) then polyester
powder coating (thickness: 0.1 mm).
● Wire diameter: 3.0–6.0 mm
● Height (mm): 900, 1200, 1500, 1800, 2100, 2400.
● Width (mm): 1000, 1500, 2000, 2400, 2500, 3000.
● Mesh size (mm): 50 × 100, 50 × 150, 50 × 200, 75 × 200, 75 × 300,
100 × 200, 100 × 300.
● Color: available any RAL. But green RAL 6005, black RAL 9005,
white RAL 9010, gray RAL 7030, red RAL 3020, yellow RAL 1023, blue
RAL 5017 are common.
3Curvy Welded Fence Advantages:
● Excellent corrosion resistance, anti-aging and anti-aging
property.
● Sunshine resistance and weather-proof.
● With rectangular mesh and horizontal reinforcement guarantee a
very high level of rigidity.
● Have four horizontal bending rebar therefore it will strengthen
the fence network.
● Not only has a beautiful outlook but also has a durable
structure.
● Can withstand outdoor exposure.
● Easy and quick to transport and install.
● Terrain adaptability, the adjacent column with undulating ground
can be adjusted upwards or downwards.
● Bright, reflective colors stand out in day or night
● Easy transportation, save time and labor cost.
4 Curvy Welded Fence Applications:
● Mainly used in highway and railway bridge on both sides of the
protection zone.
● Airports, ports, terminals security.
● Municipal building in the park, lawn, zoo, pool lake, roads, and
residential isolation.
● Guest Houses, hotels, supermarkets and entertainment protective.
5Posts about Wire Panels
The welded mesh fence panels are attached with high strength steel
posts. The common posts of the welded fence are SHS tube, RHS tube,
Peach post, Round pipe or Special-shaped post. Welded mesh fence
panels will be fixed to the post by suitable clips according to
different post type.
6 Wire Panels Installation manner;
1.The post popular buried under the ground 600mm-800mm and pouring
concrete when installation them.
2.Welded flange base under the post ,and use setscrews to install
on the hard ground.
Products Description
| | | | | |
| | | | Gal + Powder Coated 3.85mm/4.0mm 4.35mm/4.5mm 4.85mm/5.0mm 5.35mm/5.5mm Gal + PVC Coated
3.0mm/4.0mm 3.5mm/4.5mm
4.0mm/5.0mm 4.5mm/5.5mm 5.0mm/6.0mm Hot-dipped Gal 4mm 4.5mm 5mm 5.5mm 6mm | 200X55mm
200x50mm
150x50mm
100x50mm |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
